Adding subtitles to any .avi file


Here is a quick and simple guide to add subtitles to any .avi file that you would like to have harcoded subtitles.


Introduction and Requirements


Here are the tools you will need to succesfully complete this guide:

VirtualDUB

SRT-SSA Converter

VirtualDub Subtitler Plug-in


If you dont already have the subtitle files on your computer, you can find some here:

DivXSubtitles



Getting Started


The first step is opening up VirtualDub. You then want to go into the Video tab and select Filters or for convinience sake, simply press Ctrl+F. Then press the Add button followed by the Load button. You now want find the subtitler.vdf file you downloaded before and finish the operation by pressing Open.

Leave VirtualDub open, as we will need it for later steps.

Once you have acquired the subtitle file you want for the .avi you have, make sure you put them in the same folder. I would recommend creating a new folder on the Desktop for convinience.


Converting subtitles


The next step is converting the .srt files into something VirtualDub can read, in this case, an .ssa file.

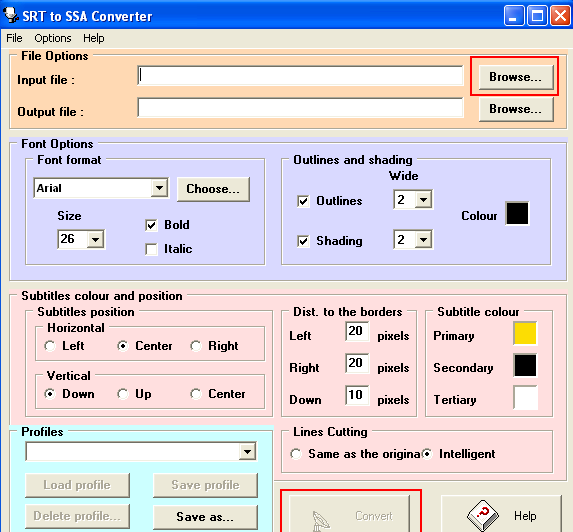

Open up the .SRT-.SSA Converter and click on Browse to select the .srt file you want converted.

The program will now automatically create an output file with the identical name as the input file except with an .ssa extension.

All you have to do now is hit Convert and wait until it is done processing.


Adding subtitles into VirtualDub


Its now time to go back to VirtualDub which should still be open.

Go to the Video tab and select Full Processing Mode.

Now go to File and Open Video File... and use the browse function to select the .avi file you want the subtitles hardcoded to. Press Open when you find it.

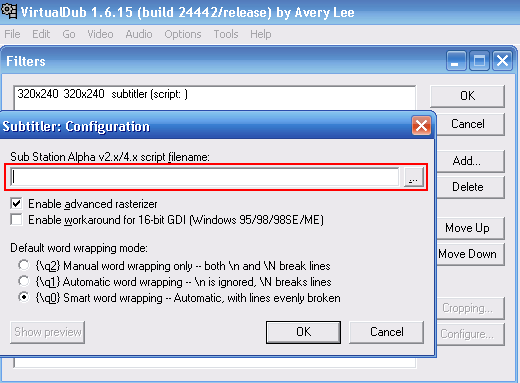

Once the video has opened, go once again to the Video tab and select Filters again.

Press the Add button, and navigate down to the Subtitler option and press OK.

Select the .ssa you created earlier and press OK


Selecting the Compression


The final step is selecting the compression for our .avi.

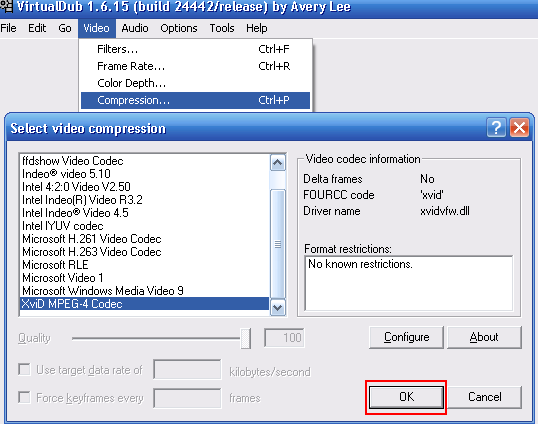

Navigate once again to the Video tab and this time press on Compression.

If your file is an XviD (most will be) then simply select XviD Mpeg-4 Codec from the list. Leave the default settings.

If your file is another type of compression select that from the list and leave the default settings.


Saving your file and finishing up


To finish up simply go to File and select Save As .avi or simply press F7 for convinience. Save it where you want and make sure the Save as type is set to audio-video interleave (avi).

Click Save and you are done. Sit back and wait for your .avi with hardcoded subtitles.


Version History


v1.0 -- 6th March, 2007, First version online (Dvdback23)

Written by: Andre "DVDBack23" Yoskowitz
Last updated: 6 March 2007
