Lesson 5 Objectives


  • Identify the format of your source audio
  • Encode your audio to AC-3 if it is not already in that format
  • Use the Cut file generated in Lesson 3 to edit your audio to match your video (if applicable)


There are essentially two questions you need to deal with when it comes to the audio for your Blu-ray disc. First, is it encoded to a Blu-ray compliant format. There are numerous formats which are allowed on a Blu-ray disc, but when it comes to sources which don't originate from a professionally authored disc you can generally narrow it down to just two - Dolby Digital (AC-3 or A52) and LPCM (uncompressed).


In this lesson I will not be covering LPCM. That will be the subject for a future, more advanced, installment. Instead I am assuming that you will be using Dolby Digital for your Blu-ray since it is such a common format and MeGUI includes tools for encoding it.



Cutting Audio To Match Video Edits


Besides the format, another possible concern you may need to address is matching up the length of your audio source with your video. This should only be an issue if you used the AVS Cutter to edit your video prior to encoding. That's where the Cuts file produced at the end of that process comes into play. When you encode your audio you will need to make sure to load that file and matching edits will be made to the audio stream prior to encoding. If your audio does not need to be encoded there is also a separate Audio Cutter tool which will perform the edits without altering the rest of the audio.




Possible Audio Sources


Before you can figure out what, if anything, you will need to do to process your audio, you need to figure out what type of audio source you have. There are basically three possibilities.



1. An Extracted Audio File

If you opened your source using either the DGIndex file indexer or HD Streams Extractor you should have ended up with one or more audio files which were extracted from your source. Typically these will be Dolby Digital or LPCM files. If they are LPCM audio, they will typically be either WAV or FLAC (losslessly compressed) files.

2. Separate Audio Source

Your audio may have already been in a separate file when you began. In that case you can treat it just like an audio file extracted via MeGUI

3. An AviSynth Script

If you indexed your source video using FFIndex but didn't use the HD Streams Extractor first, you would have ended up with a second AviSynth script (AVS file) which you can use to read the audio from your source. Although this is not optimal if your audio is already in Dolby Digital format since it will require you to re-encode, chances are the audio was in some other format, most likely AAC (Advanced Audio Coding) which would have to be converted to AC-3 anyway. In that case having an AVS file as your source can be quite advantageous since it makes matching any edits you may have done very simple.

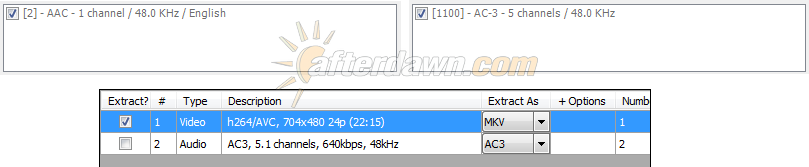

Whatever type of audio you have, whichever tool you used to extract it should have provided you with all the details you need to determine what, if any, processing is necessary. Below you can see examples taken from FFIndex (top left), DGIndex (top right), and the HD Streams Extractor (bottom). Notice that each one lists the encoding, number of channels, and sampling frequency. Additionally, if your audio was extracted by DGIndex the filename will include the bitrate it is encoded at.



Audio stream details in MeGUI's extraction tools - AfterDawn.com



Dolby Digital Sources


If your audio is already in Dolby Digital format and has a samplerate of 48kHz, 96kHz, or 192kHz, you can skip encoding entirely. If you did not use the AVS Cutter to trim your file you can simply stop at this point and go straight to authoring your Blu-ray disc. If you did use the AVS Cutter on your video, continue to the next step where you will edit the audio to match.



Cutting Dolby Digital Files


If you did use the AVS Cutter to edit your video, you will need to cut the audio to match. This is easily accomplished using MeGUI's Audio Cutter.



Open MeGUI's Audio Cutter tool - AfterDawn.com

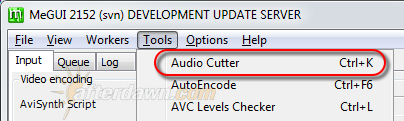

Open the Audio Cutter from MeGUI's Tools menu.

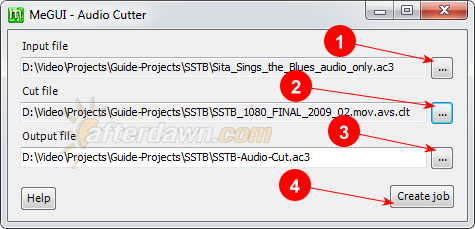

MeGUI's Audio Cutter interface - AfterDawn.com

1. Source Audio File

First open your source AC3 (Dolby Digital) file.

2. Select Cuts File

Next you will need to open the Cuts file you created with the AVS Cutter back in Lesson 2.

3. Output File

Finally you will set an output file which will be identical to the source, except with the sections indicated by the Cuts file removed. In other words, no encoding will be done so no quality will be lost.

4. Create Job

Click this button to create the audio cutting job and add it to MeGUI's queue.


Once your audio cutting job completes you are ready to move on either to any additional audio streams or to authoring your Blu-ray disc.




Encoding To Dolby Digital


MeGUI has two different tools capable of encodng AC-3 (Dolby Digital) audio. One of them, Aften, has been out of development for quite some time so I recommend that you use the other tool - FFmpeg - instead. In either case, though, the encoder settings interface is identical so you can use these directions for either one.



The Audio Encoding Interface

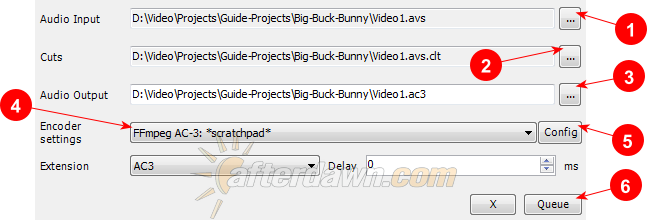

You will find the audio encoding interface at the bottom of the main MeGUI window.



MeGUI's Audio encoding tab - AfterDawn.com

1. Audio File or AviSynth Script

Start by opening the audio file which MeGUI extracted from your source. If you indexed with FFIndex you will have an AviSynth script (AVS file) with a name referencing a track number. This is the file you will use as your audio source.

2. Select Cuts File

If you edited your video with the AVS Cutter, you will need to load the Cuts file created at the end of the process so the audio can be edited to match before encoding.

3. Output File

This should be self explanatory. It's the file MeGUI will be creating for you.

4. Encoder Profile

By now you should be familiar with MeGUI's profile-based interface. Select the FFmpeg *scratchpad* option here. Alternatively, you can select one of the Aften profiles or a custom (FFmpeg or Aften) profile you have already created for yourself.

5. Configure Audio Encoder Settings

This will open the audio encoder settings dialog. See below for detailed instructions on configuring either of the AC-3 encoders.

6. Create Job

Once you are satisfied with all your settings, use the Queue button to create a video encoding job and add it to the queue.


AC-3 Encoder Settings

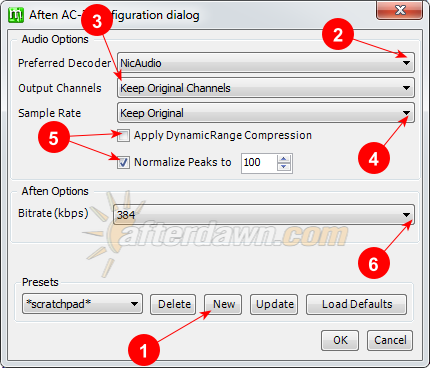

MeGUI AC-3 encoder options - AfterDawn.com

1. New Profile

This works essentially the same as MeGUI's other profile interfaces. Use the New button to copy the current settings into a custom profile to reuse them later.

2. Preferred Decoder

Regardless of the source, AviSynth is used to open and process (but not encode) your audio. This setting determines what filter is used to open it. Unless you run into problems you shouldn't change it. Otherwise you can choose FFAudioSource, which uses FFmpeg libraries, or DirectShow, which attempts to use Windows' DirectShow interface.

3. Ouput Channels

You can choose to keep the original channel configuration, downmix streams with more than two channels to stereo, or upsample stereo sources to surround. You can even convert your audio to mono. Given the extremely small size of even the largest AC-3 file compared to the space available on a Blu-ray disc, there really isn't any advantage to downmixing. Likewise, there really isn't anything to be gained from upmixing since AviSynth has no way to know what sounds should be directed to which speakers. As a general rule you should simply keep the original channels.

4. Sample Rate

This should be set to either Keep Original or Change to 48000Hz. The other sample rates listed are not Blu-ray compliant.

5. Dynamic Range Compression & Normalization

These options control the AC-3 settings used to prevent the difference between very quiet and very loud sounds from becoming too great. If you don't know what they do, don't mess with them.

6. Bitrate

Typically the bitrate used for encoding stereo AC-3 files is eithe 192kbps or 224kbps. Surround streams for DVD are usually encoded at 384kbps or 448kbps. Blu-ray allows up to 640kbps. Whether it is worth going that high is something only your own ears can tell you. Once again, though, it is next to nothing compared to the size of a Blu-ray disc so it probably won't hurt.



Continue To Lesson 6


So far you have learned about techniques tailored for encoding a single title (video file) for Blu-ray, but what if you want to put multiple titles on a disc? In the next lesson you will be introduced to a technique for calculating bitrates for encoding multiple videos and some suggestions for tweaking the process to maintain even quality among sources with varying encoding requirements and complexity.
