| Chipset | Intel H57 Express |
| Form factor | ATX |
| CPU socket | Socket H / LGA 1156 |
| Memory type | DDR III |
| DDR3-800 | No |
| DDR3-1066 | Yes |
| DDR3-1333 | Yes |
| DDR3-1600 | Yes |
| DDR3-1866 | No |
| DDR3-2133 | Yes |
| Memory slots | 4 |
| ECC | No |
| Max. RAM | 16384 MB |
| P-ATA | Yes |
| SATA | Yes |
| PCI slots | 2 |
| PCI-E x1 | 2 |
| PCI-E x16 | 2 |
| CrossFire/SLI | CrossFire and SLI support |
| Integrated sound adapter | Yes |
| Surround audio | 7.1 support |
| Integrated graphics | Yes |
| Dedicated graphics memory | 1759 MB |
| VGA outputs | 1 |
| HDMI outputs | 1 |
| DVI output | Yes |
| Number of LAN adapters | 1 integrated Ethernet adapter |
| LAN type | 1000Mbps |
| Integrated WLAN | No WLAN |
| USB ports | 6 |
| USB3 ports | 2 |
| Firewire ports | 1 |
| PS/2 ports | 1 |
| eSATA ports | 1 |
| RS-232 | Yes |

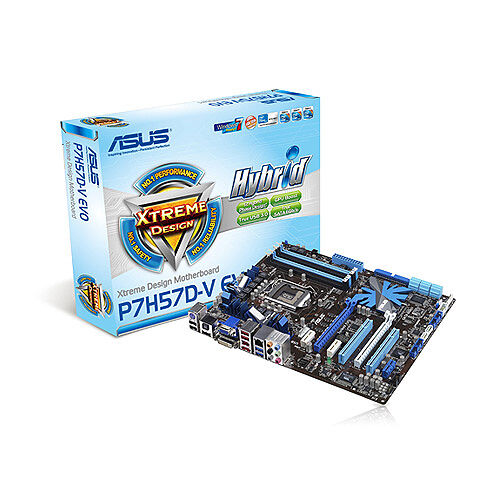

| Manufacturer product code(s) | 90-MIBBD0-G0EAY00Z / P7H57D-V EVO |
| UPC / EAN code(s) | 4719543174418 |
