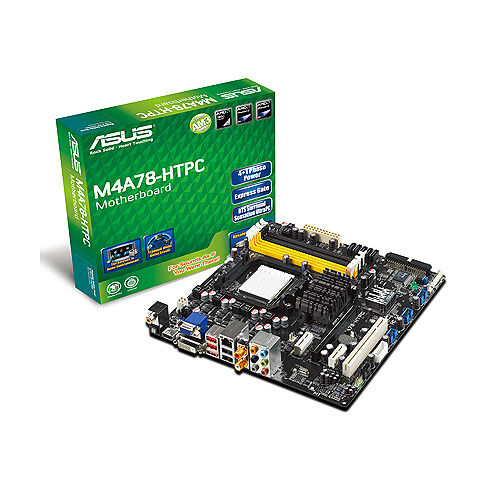

Asus M4A78-HTPC
AMD 780G/SB700 / Micro ATX / Socket AM3 / No WLAN
Manufacturer: Asus |
Product category: Motherboards
| Chipset | AMD 780G/SB700 |
| Form factor | Micro ATX |
| CPU socket | Socket AM3 |
| Memory type | DDR II |
| Supported memory speeds | DDR2-400 |
| Supported memory speeds | DDR2-533 |
| Supported memory speeds | DDR2-667/DDR2-800/DDR2-1066 |
| Memory slots | 4 |
| ECC | Yes |
| Max. RAM | 16384 MB |
| P-ATA | Yes |
| SATA | Yes |
| SATA RAID | Yes |
| SATA III / SATA-600 | No |
| PCI slots | 1 |
| PCI-E x1 | 2 |
| PCI-E x16 | 1 |
| CrossFire/SLI | CrossFire |
| Integrated sound adapter | Yes |
| Surround audio | 7.1 support |
| Toslink | Yes |
| Integrated graphics | Yes |
| Dedicated graphics memory | 256 MB |
| VGA outputs | 1 |
| HDMI outputs | 1 |
| DVI output | Yes |
| Number of LAN adapters | 1 integrated Ethernet adapter |
| LAN type | 1000Mbps |
| Integrated WLAN | No WLAN |
| USB ports | 4 |
| eSATA ports | 1 |
| Manufacturer product code(s) | M4A78-HTPC |
