| Chipset | AMD 870 / SB850 |
| Form factor | ATX |
| CPU socket | Socket AM3 |
| Memory type | DDR III |
| DDR3-800 | No |
| DDR3-1066 | Yes |
| DDR3-1333 | Yes |
| DDR3-1600 | Yes |
| DDR3-2133 | Yes |
| Memory slots | 4 |
| ECC | Yes |
| Max. RAM | 16384 MB |
| P-ATA | Yes |
| SATA | Yes |
| SATA RAID | Yes |
| SATA III / SATA-600 | Yes |
| PCI slots | 3 |
| PCI 64-bit slots | 0 |
| PCI-E x1 | 1 |
| PCIe x4 slots | 0 |
| PCI-E x16 | 2 |
| PCIe 2.0 X16 slots | 2 |
| Integrated sound adapter | Yes |
| Surround audio | 7.1 support |
| Toslink | Yes |
| Integrated graphics | No |
| Number of LAN adapters | 1 integrated Ethernet adapter |
| LAN type | 1000Mbps |
| Integrated WLAN | No WLAN |
| USB ports | 6 |
| USB3 ports | 2 |
| Firewire ports | 1 |
| PS/2 ports | 2 |
| RS-232 | Yes |

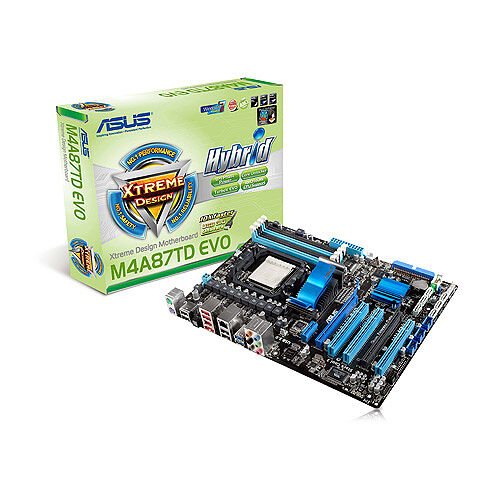

| Manufacturer product code(s) | 90-MIBCK0-G0EAY0WZ / M4A87TD EVO |
| UPC / EAN code(s) | 4719543176139 |
