| Chipset | AMD 780G / SB710 |
| Form factor | Micro ATX |
| CPU socket | Socket AM3 |
| Memory type | DDR II |
| Supported memory speeds | DDR2-400 |
| Supported memory speeds | DDR2-533 |
| Supported memory speeds | DDR2-667/DDR2-800/DDR2-1066 |
| Memory slots | 2 |
| ECC | Yes |
| Max. RAM | 8192 MB |
| P-ATA | Yes |
| SATA | Yes |
| SATA RAID | Yes |
| PCI slots | 2 |
| PCI-E x1 | 1 |
| PCI-E x16 | 1 |
| CrossFire/SLI | CrossFire |
| Integrated sound adapter | Yes |
| Surround audio | 5.1 support |
| Integrated graphics | Yes |
| Dedicated graphics memory | 256 MB |
| VGA outputs | 1 |
| DVI output | No |
| Number of LAN adapters | 1 integrated Ethernet adapter |
| USB ports | 4 |
| PS/2 ports | 2 |

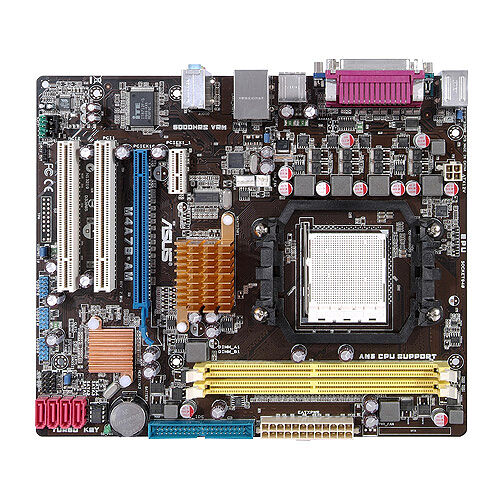

| Manufacturer product code(s) | M4A78-AM |
