| Chipset | Intel X58 Express, Intel ICH10R |
| Form factor | ATX |
| CPU socket | Socket B / LGA1366 |
| Memory type | DDR III |
| Memory slots | 6 |
| Max. RAM | 24576 MB |
| P-ATA | No |
| SATA | Yes |
| SATA RAID | Yes |
| PCI slots | 1 |
| PCI-E x1 | 3 |
| PCI-E x16 | 3 |
| CrossFire/SLI | CrossFire and SLI support |
| Integrated sound adapter | Yes |
| Surround audio | 7.1 support |
| Toslink | Yes |
| Integrated graphics | No |
| Number of LAN adapters | 1 integrated Ethernet adapter |
| LAN type | 1000Mbps |
| Integrated WLAN | No WLAN |
| USB ports | 6 |
| USB3 ports | 2 |
| PS/2 ports | 2 |

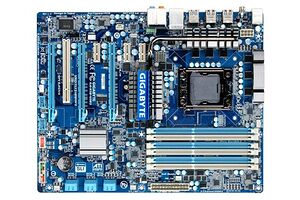

| Manufacturer product code(s) | GA-X58-USB3 |
| UPC / EAN code(s) | 4719331830168 |
Had major issues with the network adapter not showing up in the Device Manager. Apparently there is something incomparable with Microsofts driver update for the realtek nic that didnt allow it to be seen which means no internet access, and no updating the drivers (since it doesnt show up as "there")
