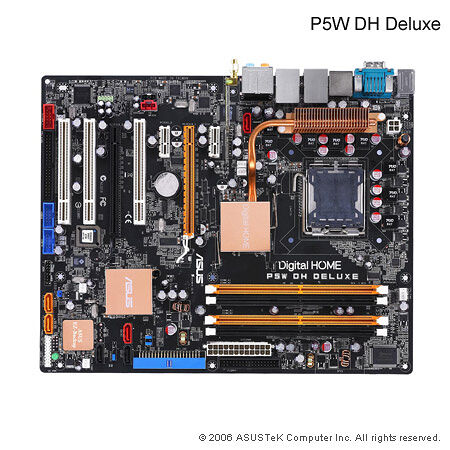

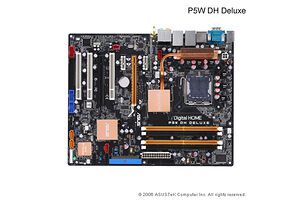

Asus P5W DH Deluxe
Intel 975X / Intel ICH7R / ATX / Socket T / LGA775 / 802.11b/g
Manufacturer: Asus |
Product category: Motherboards
| Chipset | Intel 975X / Intel ICH7R |
| Form factor | ATX |
| CPU socket | Socket T / LGA775 |
| Max number of CPUs | 1 |
| Max bus speed | 1066 MHz |
| BIOS | AMI |
| Memory type | DDR II |
| Supported memory speeds | DDR2-400 |
| Supported memory speeds | DDR2-533/DDR2-667/DDR2-800 |
| Memory slots | 4 |
| ECC | Yes |
| Max. RAM | 8192 MB |
| P-ATA | Yes |
| SATA | Yes |
| SATA RAID | Yes |
| SCSI | No |
| PCI slots | 3 |
| PCI-E x1 | 2 |
| PCI-E x16 | 2 |
| CrossFire/SLI | CrossFire |
| AGP type | No AGP slots |
| Integrated sound adapter | Yes |
| Surround audio | 7.1 support |
| Toslink | Yes |
| Integrated graphics | No |
| Number of LAN adapters | 2 integrated Ethernet adapters |
| LAN type | 1000Mbps |
| Integrated WLAN | 802.11b/g |
| USB ports | 4 |
| Firewire ports | 1 |
| PS/2 ports | 2 |
| RS-232 | Yes |
| Manufacturer product code(s) | 90-MBB2X0-G0EAY / 90-MBB2X0-G0EAY / GPEA45 / GPEA45 / P5W DH DELUXE / P5W DH DELUXE/WIFI-AP / P5W-DH-DELUXE / P5WDHDLXWIFI |
| UPC / EAN code(s) | 0610839138302 / 0610839138302 / 4719543138304 / 4719543138304 / 610839138319 |
