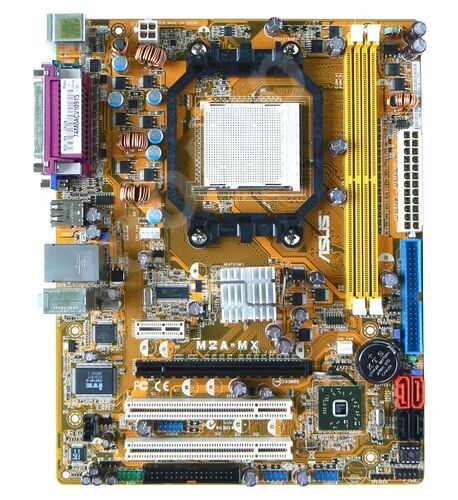

Asus M2A-MX
AMD 690V/SB600 / Micro ATX / Socket AM2 / No WLAN
Manufacturer: Asus |
Product category: Motherboards
| Chipset | AMD 690V/SB600 |
| Form factor | Micro ATX |
| CPU socket | Socket AM2 |
| Max number of CPUs | 1 |
| Max bus speed | 2000 MHz |
| BIOS | AMI |
| Memory type | DDR II |
| Supported memory speeds | DDR2-400?/DDR2-533/DDR2-667/DDR2-800/DDR2-1066 |
| Memory slots | 2 |
| ECC | No |
| Max. RAM | 4096 MB |
| P-ATA | Yes |
| SATA | Yes |
| SATA RAID | Yes |
| SCSI | No |
| PCI slots | 2 |
| PCI-E x1 | 1 |
| PCI-E x16 | 1 |
| CrossFire/SLI | None |
| AGP type | No AGP slots |
| Integrated sound adapter | Yes |
| Surround audio | 5.1 support |
| Toslink | Yes |
| Integrated graphics | Yes |
| Dedicated graphics memory | 400 MB |
| VGA outputs | 1 |
| HDMI outputs | 0 |
| Component output | Yes |
| DVI output | No |
| Number of LAN adapters | 1 integrated Ethernet adapter |
| LAN type | 1000Mbps |
| Integrated WLAN | No WLAN |
| USB ports | 4 |
| Firewire ports | 0 |
| PS/2 ports | 1 |
| eSATA ports | 0 |
| RS-232 | No |
| Manufacturer product code(s) | 90-MIB2L0-G0EAY00Z / M2A-MX |
| UPC / EAN code(s) | 4719543157022 |
