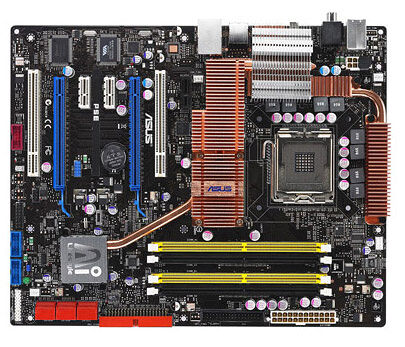

Asus P5E Deluxe
Intel X48 + ICH9R / ATX / Socket T / LGA775 / No WLAN
Manufacturer: Asus |
Product category: Motherboards
| Chipset | Intel X48 + ICH9R |
| Form factor | ATX |
| CPU socket | Socket T / LGA775 |
| Max number of CPUs | 1 |
| Max bus speed | 1600 MHz |
| BIOS | AMI |
| Memory type | DDR II |
| Supported memory speeds | DDR2-400 |
| Supported memory speeds | DDR2-533 |
| Supported memory speeds | DDR2-667/DDR2-800/DDR2-1066 |
| Memory slots | 4 |
| ECC | Yes |
| Max. RAM | 8192 MB |
| P-ATA | Yes |
| SATA | Yes |
| SATA RAID | Yes |
| PCI slots | 2 |
| PCI-E x1 | 3 |
| PCI-E x16 | 2 |
| CrossFire/SLI | CrossFire |
| AGP type | No AGP slots |
| Integrated sound adapter | Yes |
| Surround audio | 7.1 support |
| Toslink | Yes |
| Integrated graphics | No |
| Number of LAN adapters | 1 integrated Ethernet adapter |
| LAN type | 1000Mbps |
| Integrated WLAN | No WLAN |
| USB ports | 6 |
| Firewire ports | 1 |
| PS/2 ports | 1 |
| eSATA ports | 0 |
| Manufacturer product code(s) | 90-MIB590-G0AAY00Z / 90-MIB590-G0EAY00Z / P5E Deluxe / P5E DELUXE |
| UPC / EAN code(s) | 4719543162453 / 610839162451 |
