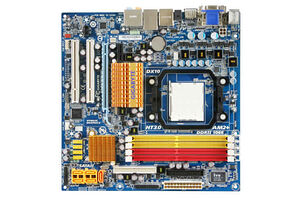

Gigabyte GA-MA78GM-S2H

Gigabyte GA-MA78GM-S2H
AMD 780G / ATX / Socket AM2+ / No WLAN
Manufacturer: Gigabyte | Product category: Motherboards
Chipset AMD 780G
Form factor ATX
CPU socket Socket AM2+
Max number of CPUs 1
Max bus speed 1066 MHz
BIOS AWARD BIOS
Memory type DDR II
Supported memory speeds DDR2-400
Supported memory speeds DDR2-533
Supported memory speeds DDR2-667/DDR2-800/DDR2-1066
Memory slots 4
ECC No
Max. RAM 16000 MB
P-ATA No
SATA Yes
SATA RAID Yes
PCI slots 2
PCI-E x1 1
PCI-E x16 1
CrossFire/SLI None
AGP type No AGP slots
Integrated sound adapter Yes
Surround audio 7.1 support
Toslink Yes
Integrated graphics Yes
VGA outputs 1
HDMI outputs 1
Component output No
DVI output Yes
Number of LAN adapters 1 integrated Ethernet adapter
LAN type 1000Mbps
Integrated WLAN No WLAN
USB ports 4
Firewire ports 1
PS/2 ports 2
eSATA ports 1
RS-232 No
Manufacturer product code(s) GA-MA78GM-S2H
UPC / EAN code(s) 4719331803063
