Burn DVD Folder to DVD with ImgBurn

This is an optional part of the ConvertXtoDVD guide that covers burning a DVD folder to a blank DVD disc with ImgBurn. If you already burned it with ConvertXtoDVD there is no need to be here, except educational purposes. If you haven't already done so, please download and install ImgBurn now.

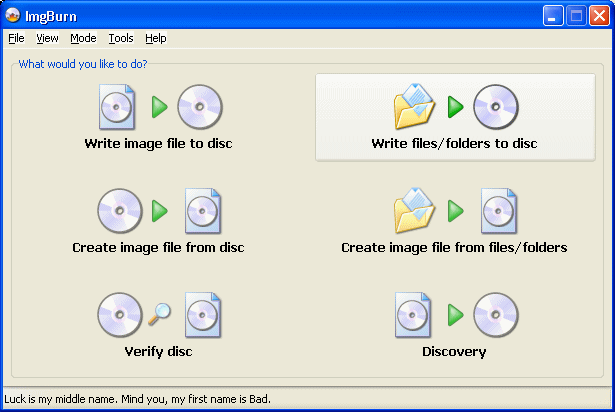

ImgBurn First Run

The first thing you will see when you launch ImgBurn is a start page. The including of this Welcome screen has made things much easier to understand for new users to the software. To enter Build Mode, click Write files/folders to disc.

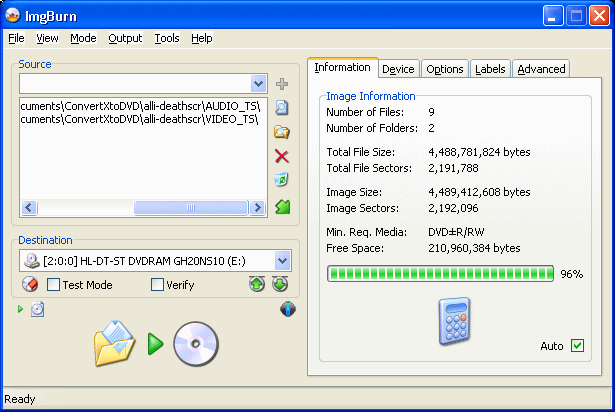

ImgBurn Build Mode

ImgBurn will now enter Build Mode, letting you add Files and Folders to the compilation. You now must add the DVD files to ImgBurn. Usually you will have a VIDEO_TS and AUDIO_TS folder. Simply drag and drop both folders into the ImgBurn Source box on the left side of the program. It should look like the picture above this text. (Note that for compatibility reasons, even if you only originally have a VIDEO_TS folder, create an AUDIO_TS folder and leave it blank, and add it to the compilation).

Also take note that the calculator on ImgBurn is set to work automatically, showing how much of your disc will be taken up by the files. If your DVD files are larger than 4.36GB, you are going to need to either use dual layer media or compress the DVD.

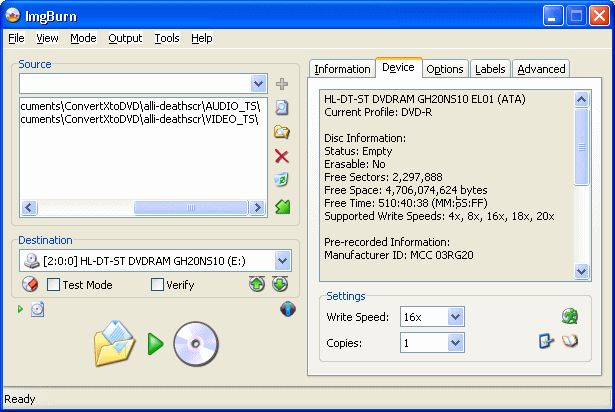

ImgBurn Device Tab Settings

Under Device settings the noticeable changes that can be made are Write Speed and Copies, you can adjust these to whatever suits but keep the speed in line with what is reported as "Supported Write Speeds" above. If you are using DVD+R media now, you can increase compatibility with DVD hardware by changing the BookType if you have a compatible burner. If so, then click the book icon (the small icon on the lower right hand corner, across from the Copies field).

A new window will pop up.

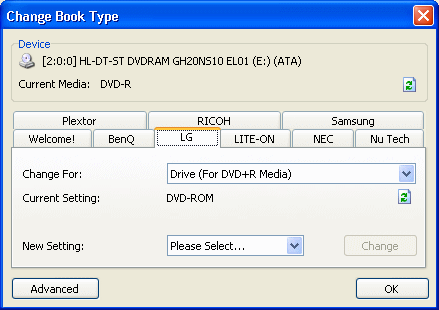

Change BookType (Optional for DVD+R Media ONLY)

Select the manufacturer of your compatible burner. Mine is LG in the demonstration picture. As you can see, I have set "Change For" to "Drive (For DVD+R Media)" and changed new setting to DVD-ROM. This will make most DVD hardware more compatible with the disc and will almost eliminate the old problem of DVD hardware being incompatible with DVD+R media.

You will need to click Change. If the BookType setting is changed correctly, you will get a "Success!" message. Click OK. Click the Options tab now.

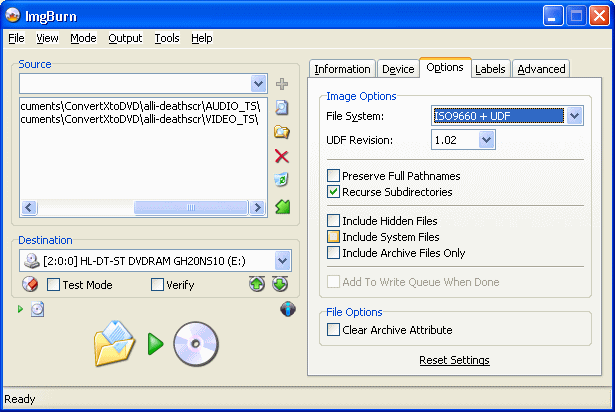

ImgBurn Options Tab

The important thing here is to make sure that File System is set to ISO9660 + UDF and tick Recurse Subdirectories. Now move on to the Labels tab.

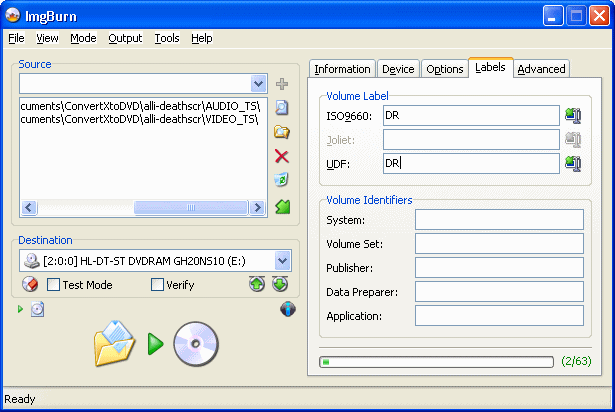

ImgBurn Labels Settings

Give your DVD a name. I have set the ISO9660 setting to "DR" and UDF to "DR". You can fill in the rest of the Volume Identifier fields if you wish to do so but none of this is necessary.

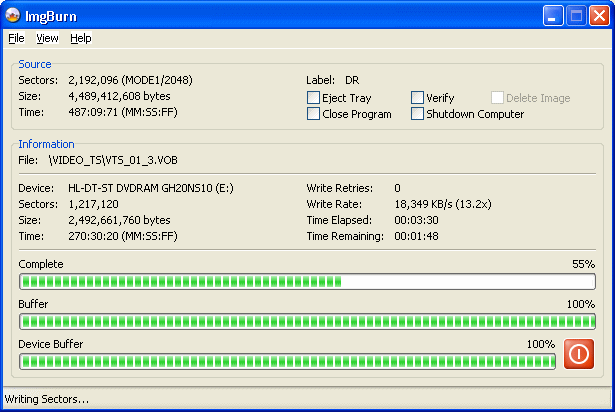

ImgBurn Burning Process

To start burning, click the Burn button (the burn button is a Folder with an arrow pointing to a Disc).

The burning process will take time depending on the speed of burning and the amount it has to burn. If you have Verify ticked, it will run a quick check when the burning is finished to make sure there was no loss of data while burning that could lead to a defective useless disc.

Burn Success?

If all went well you should get a pop-up message reading, "Operating Successfully Completed!".


You read all the way to the end, congratulations. I truly hope that you will have found this information interesting and helpful. If you experience any problems, please visit our Discussion Forums and ask for assistance there. If you are interested, you can follow me on twitter at but please understand that I won't be using Twitter to provide live support for any of my articles.
