Rating: 2 / 5
Value for money: 2 / 5
Beware of ASUS motherboards. Their warranty is not everything it seems to be.

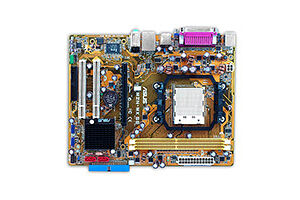

Asus M2N-MX SE
NVIDIA GeForce 6100 / Micro ATX / Socket AM2 / No WLAN
Manufacturer: Asus |
Product category: Motherboards
| Chipset | NVIDIA GeForce 6100 |
| Form factor | Micro ATX |
| CPU socket | Socket AM2 |
| Max number of CPUs | 1 |
| Max bus speed | 2000 MHz |
| BIOS | AMI |
| Memory type | DDR II |
| Supported memory speeds | DDR2-400?/DDR2-533/DDR2-667/DDR2-800 |
| Memory slots | 2 |
| ECC | No |
| Max. RAM | 4096 MB |
| P-ATA | Yes |
| SATA | Yes |
| SATA RAID | Yes |
| SCSI | No |
| PCI slots | 2 |
| CrossFire/SLI | None |
| AGP type | No AGP slots |
| Integrated sound adapter | Yes |
| Surround audio | 5.1 support |
| Toslink | Yes |
| Integrated graphics | Yes |
| VGA outputs | 1 |
| HDMI outputs | 0 |
| Component output | No |
| DVI output | No |
| Number of LAN adapters | 1 integrated Ethernet adapter |
| LAN type | 100Mbps |
| Integrated WLAN | No WLAN |
| USB ports | 4 |
| Firewire ports | 0 |
| PS/2 ports | 1 |
| RS-232 | No |
| Manufacturer product code(s) | 90-MIB1V0-G0EAY00Z / M2N-MX SE / M2N-MX-SE |
| UPC / EAN code(s) | 0610839151837 / 0610839151837 / 4719543151839 / 610839151837 |
mdcardon
Newbie
Send private message to this user
Rating: 2 / 5
Value for money: 2 / 5
Review of Asus M2N-MX SE motherboard rev 2.10G:
Very poor image quality to a high-end CRT.
Disappointed in the Nvidia GPU (DAC) and/or the motherboard design/layout
between the GPU and the VGA connector.
Background: using a known good high-end CRT (Sony G500), the m2n-mx-se
mboard gives a blurry image at 1600x1200 @85Hz. Other GPUs in same
reso/freq to same monitor are noticeably better.
I know it is not the CRT's fault because using another computer with
a Nvidia TNT PCI card at the same reso/freq and same screen image,
changing the monitor connector from one PC to the other (approximating
a side-by-side comparison) shows to more than one person the Asus image
was noticably more blurry.
Serial number on reviewed board is 76MOAIR50859.
